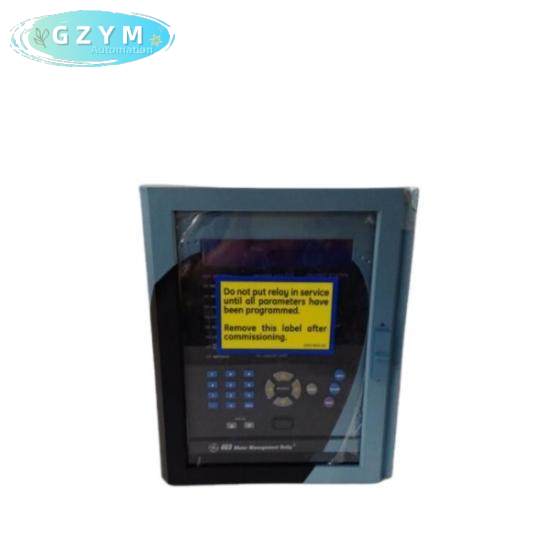

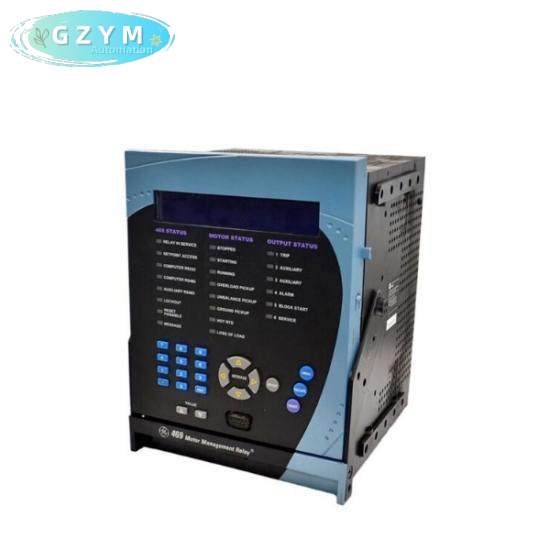

GE SR469-P5-HI-A20-E – Motor Management Relay for Medium to Large Motors

Model Number:469-P5-HI-A20-E

Brand:General Electric

Voltage Range (DC):90 – 300 VDC

Voltage Range (AC):70 – 265 VAC

Frequency Range:48 – 62 Hz

Phase Current Input:5 A

Analog Outputs:4 (0 to 1 mA)

Digital Inputs:9 opto-isolated inputs

Display:Enhanced display with larger LCD

Operating Temperature Range:-40°C to +60°C

Storage Temperature Range:-40°C to +80°C

Overvoltage Category:II

Insulation Voltage:300 V

Pollution Degree:2

RTD Inputs:Multiple (100 ohm Nickel, 120 ohm Nickel, 10 ohm Copper, 100 ohm Platinum)

Enclosure Rating:20-X

    The GE SR469-P5-HI-A20-E is an advanced Motor Management Relay designed specifically for industrial applications. It features multiple RTD inputs, allowing it to monitor the actual temperature and hottest point of the motor system, ensuring optimal performance and safety. The relay is built with a larger LCD display for enhanced readability and user convenience. With a robust enclosure rating and conformal coating, it is equipped to withstand harsh chemical environments, making it ideal for use in demanding industrial settings. The device operates within a wide voltage and frequency range, providing reliable protection for medium and large motors. The 4 analog outputs and 9 opto-isolated digital inputs enable comprehensive monitoring and control capabilities. Additionally, the unit comes with software support for easy setup and configuration, ensuring seamless integration into existing industrial systems. The SR469-P5-HI-A20-E offers unparalleled reliability and performance, making it a top choice for industrial motor management.
